Sandwich panel roof
Overlapping sandwich panels with polyurethane insulation.

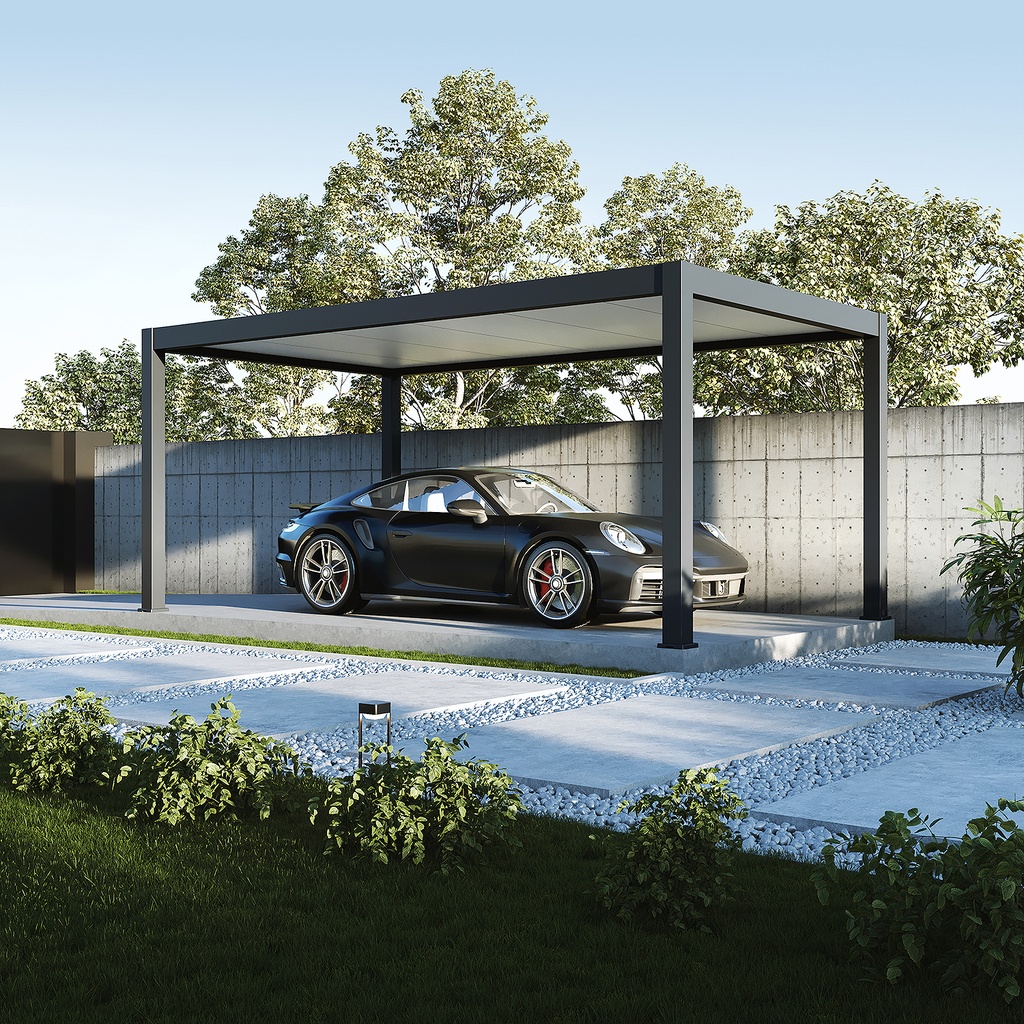

Carport Alusan
Benefits
Free delivery
Fast delivery: 7-14 days
Easy assembly
Verified quality
Warranty
5 years on the structure
3 x 5.3 m
roof for one car
80 kg/m²
snow load
100 km/h
wind resistance
236 cm
internal height
Aluminium structure
Rigid free-standing structure
Aluminium posts and beams form a rigid, free-standing structure in anthracite (RAL 7024).
✓150 x 150 mm posts square aluminium profile
✓195 x 120 mm beams with a built-in gutter for rainwater
✓wind tested up to 100 km/h
✓internal height 236 cm height under the beam
Roof and water drainage
Insulated roof, drainage through the posts
The roof is made of overlapping sandwich panels: an outer layer of galvanised steel with 30 mm of polyurethane foam in between. The insulated roof reduces heat build-up under the carport on hot days. Rainwater from the roof runs into the gutter in the beams and from there down into the ground.
✓80 kg/m² load capacity roof snow load
✓drainage through the posts four outlets on every post
✓overflow at the edge in extremely heavy rain the excess may overflow the edge of the roof
✓occasional cleaning clear leaves from the gutter and outlets so water can drain
Fixing to the ground
Fixed to a solid base
The posts are fixed to a concrete slab or point foundations. The kit for fixing the carport to the ground is included.
✓fixing kit included M10 x 80 mm anchor bolts for each post
✓base concrete slab or point foundations
✓every part is labelled detailed instructions are included
Colour range
Structure in anthracite, roof in light grey.
Technical data
Free-standing · 3 x 5.3 m
External dimensions including roof309 x 526 x 256 cm
Total weightapprox. 260 kg
Wind resistance100 km/h
Snow load80 kg/m²Structure materialAluminium
RoofSandwich panel: galvanised steel with 30 mm PU foam
ColourAnthracite (RAL 7024), roof light grey (RAL 7035)
Posts4 x 15 x 15 cm
Beams19.5 x 12 cm
Internal height236 cm
Post spacing279 x 496 cm
Water drainageGutter in the beams, drainage through the posts
Carport dimensions
Frequently asked questions
How many vehicles is it suitable for?
For one passenger car. The roof measures 3.09 x 5.26 m and there is 279 x 496 cm of space between the posts. The version with storage room also has an enclosed 3 x 2.55 m storage space at the side.
How much snow and wind does it take?
The roof is designed for 80 kg of snow per square metre and the structure is tested for wind of up to 100 km/h. If more than 50 cm of snow builds up, remove it from the roof.
Where does the rainwater go?
Through the gutter in the beams and down through the posts into the ground; every post has four outlets. In extremely heavy rain the excess may overflow the edge of the roof.
What base do I need?
A level, solid base: a concrete slab or point foundations.
Can I assemble it myself?
Yes. All parts and the kit for fixing to the ground are included, every part is labelled and detailed instructions are supplied.
What maintenance does it need?
Aluminium does not rust; occasional cleaning and clearing leaves from the gutters is enough.
What is the storage room for in the version with storage room?
An enclosed 3 x 2.55 m space next to the carport for garden tools and equipment. The walls are made of 28 mm WPC boards and the door is aluminium.
3 x 5.3 m
roof for one car
80 kg/m²
snow load
100 km/h
wind resistance
236 cm
internal height
Aluminium structure
Rigid free-standing structure
Aluminium posts and beams form a rigid, free-standing structure in anthracite (RAL 7024).
✓150 x 150 mm posts square aluminium profile
✓195 x 120 mm beams with a built-in gutter for rainwater
✓wind tested up to 100 km/h
✓internal height 236 cm height under the beam
Roof and water drainage
Insulated roof, drainage through the posts
The roof is made of overlapping sandwich panels: an outer layer of galvanised steel with 30 mm of polyurethane foam in between. The insulated roof reduces heat build-up under the carport on hot days. Rainwater from the roof runs into the gutter in the beams and from there down into the ground.
✓80 kg/m² load capacity roof snow load
✓drainage through the posts four outlets on every post
✓overflow at the edge in extremely heavy rain the excess may overflow the edge of the roof
✓occasional cleaning clear leaves from the gutter and outlets so water can drain
Fixing to the ground
Fixed to a solid base
The posts are fixed to a concrete slab or point foundations. The kit for fixing the carport to the ground is included.
✓fixing kit included M10 x 80 mm anchor bolts for each post
✓base concrete slab or point foundations
✓every part is labelled detailed instructions are included
Colour range
Structure in anthracite, roof in light grey.
Technical data
Free-standing · 3 x 5.3 m
External dimensions including roof309 x 526 x 256 cmTotal weightapprox. 260 kgWind resistance100 km/hSnow load80 kg/m²Structure materialAluminium
RoofSandwich panel: galvanised steel with 30 mm PU foam
ColourAnthracite (RAL 7024), roof light grey (RAL 7035)
Posts4 x 15 x 15 cm
Beams19.5 x 12 cm
Internal height236 cm
Post spacing279 x 496 cm
Water drainageGutter in the beams, drainage through the posts
Carport dimensions
Frequently asked questions
How many vehicles is it suitable for?
For one passenger car. The roof measures 3.09 x 5.26 m and there is 279 x 496 cm of space between the posts. The version with storage room also has an enclosed 3 x 2.55 m storage space at the side.
How much snow and wind does it take?
The roof is designed for 80 kg of snow per square metre and the structure is tested for wind of up to 100 km/h. If more than 50 cm of snow builds up, remove it from the roof.
Where does the rainwater go?
Through the gutter in the beams and down through the posts into the ground; every post has four outlets. In extremely heavy rain the excess may overflow the edge of the roof.
What base do I need?
A level, solid base: a concrete slab or point foundations.
Can I assemble it myself?
Yes. All parts and the kit for fixing to the ground are included, every part is labelled and detailed instructions are supplied.
What maintenance does it need?
Aluminium does not rust; occasional cleaning and clearing leaves from the gutters is enough.
What is the storage room for in the version with storage room?
An enclosed 3 x 2.55 m space next to the carport for garden tools and equipment. The walls are made of 28 mm WPC boards and the door is aluminium.
