Horizontal louvre side panel Antares

3 widths

93, 113 and 123 cm

28 or 35

fixed or adjustable louvres

233.5 cm

panel height

6.5 cm

panel thickness

Privacy and protection

Privacy under the pergola

The horizontal louvre side panel creates privacy under the Antares pergola while still letting light through gently. It shields you from the neighbours' eyes, from the sun and from the wind, while air still circulates freely between the louvres.

✓privacy louvres shield you from the neighbours' eyes

✓sun, wind and rain louvres hold back sun, gusts of wind and light rain

✓free air circulation heat does not build up under the pergola

Corner under the Antares pergola with horizontal louvre side panels in anthracite

Fixed louvres

28 fixed louvres

The louvres are set in the panel at a fixed angle. The panel shields you from view and from the sun, while light and air gently pass through between the louvres under the pergola.

✓28 louvres 2 cm gap between the slats

✓fixed angle no need to adjust the louvres

✓aluminium frame the panel fits directly into the Antares pergola frame

Aluminium

Aluminium in the colour of the Antares pergola

The panel is made of aluminium, powder-coated in the colour of the Antares pergola: anthracite, white or ivory cream. The louvres are also available in wood look.

✓maintenance-free the matt surface stays clean, an occasional rinse with water is enough

✓UV resistant the colour coating does not fade even after years of sun

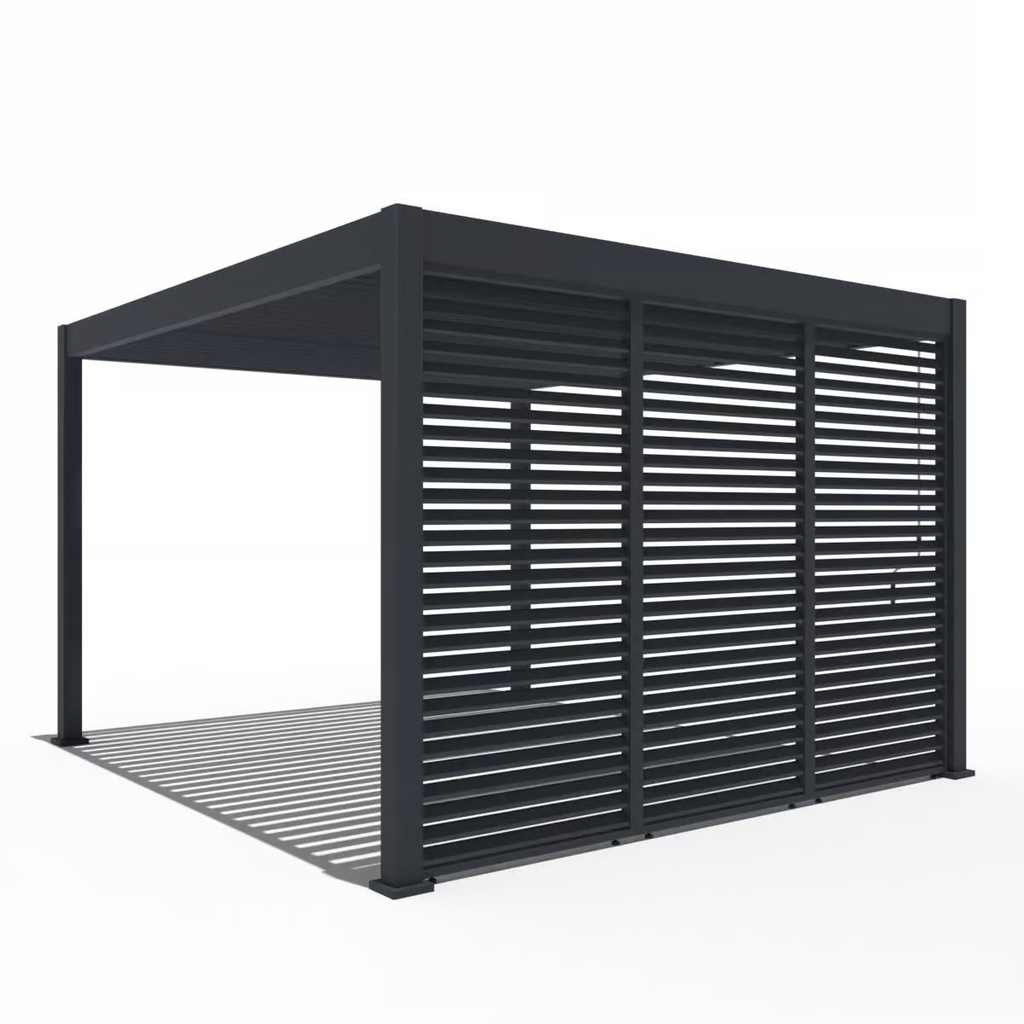

Antares pergola in anthracite with horizontal louvre side panels in the garden

Antares pergola with three horizontal louvre panels on one side

Installation

Fitted into the frame of the Antares pergola

The panel is fitted directly into the frame of the Antares pergola, on the left, right or on several sides at once. Three panels close off one side of the pergola, and the panel width matches the length of the side. All screws and materials are included in the delivery.

✓3 panels per side 93 cm for a 3 m side, 113 cm for 3.6 m, 123 cm for 4 m

✓one or more sides a corner arrangement protects from two sides at once

✓zone divider a single panel can also divide any opening on the terrace

✓screws and materials included everything you need is in the delivery

Colour range

Choose the frame in the colour of the Antares pergola: anthracite, white or ivory cream. The louvres come in the frame colour or in wood look.

AnthraciteRAL 7024, matt

WhiteRAL 9016, matt

Ivory creamRAL 9001, matt

Anthracite / wood lookanthracite frame, wood look louvres

White / wood lookwhite frame, wood look louvres

Ivory cream / wood lookivory cream frame, wood look louvres

Technical data

Horizontal louvre side panel

Panel width93 cm

Panel height233.5 cm

Thickness6.5 cm

Louvres28 fixed

MaterialAluminium, powder-coated

ColoursAnthracite, white, ivory cream; louvres also in wood look

Slats2 cm gap, fixed position

InstallationFitted into the frame of the Antares pergola

Package1 panel, screws and materials included

Panel dimensions

Horizontalna lamelna stranica - Skica mer 093

Fit

Which Antares pergola does it fit?

Three panels 93 cm wide close off a 3 m side on the following Antares pergola models, available in our shop:

Pergola Antares 3 x 3 x 2.55 m

Pergola Antares 3 x 3.6 x 2.55 m

Pergola Antares 3 x 4 x 2.55 m

Pergola Antares 3 x 6 x 2.55 m (side 6 m: 6 panels, 3 on each half)

Pergola Antares 3.6 x 6 x 2.55 m (side 6 m: 6 panels, 3 on each half)

Pergola Antares 4 x 6 x 2.55 m (side 6 m: 6 panels, 3 on each half)

Frequently asked questions

How many panels do I need?

Three panels close off one side of the pergola. A width of 93 cm matches a 3 m side, 113 cm a 3.6 m side, and 123 cm a 4 m side. For sides of 6, 7.2 and 8 m you need six panels, three for each half. If you are not sure, write to us and we will check together.

Fixed or adjustable louvres?

Fixed louvres (28) are set at a constant angle. Adjustable louvres (35) you turn by hand to set the light and air flow, upper and lower separately.

Can I use the panel on its own?

Yes. A single panel can also be used as a divider on any opening or to separate zones on the terrace.

Does the side panel protect against rain?

The louvres protect against sun, wind and light rain, while air still circulates freely between them.

What is in the package?

One panel in the chosen width. Screws and materials for connecting to the pergola are included in the delivery; wall screws are not supplied.

Are wall-mounting screws included?

Screws for fixing to the pergola are included. In a wall-side setup, when the pergola stands against a wall, you fix the accessory on that side directly to the wall. Wall screws are not included, as they depend on the surface (wood, façade, concrete). You choose the right ones for your wall, and we are glad to advise you.
