Compatible with ANTARES pergolas

The joining set is designed for freestanding ANTARES pergolas with a 116 × 116 mm post profile. It connects two pergolas into one cohesive whole, the transition is clean and seamless, as if it were a single piece.

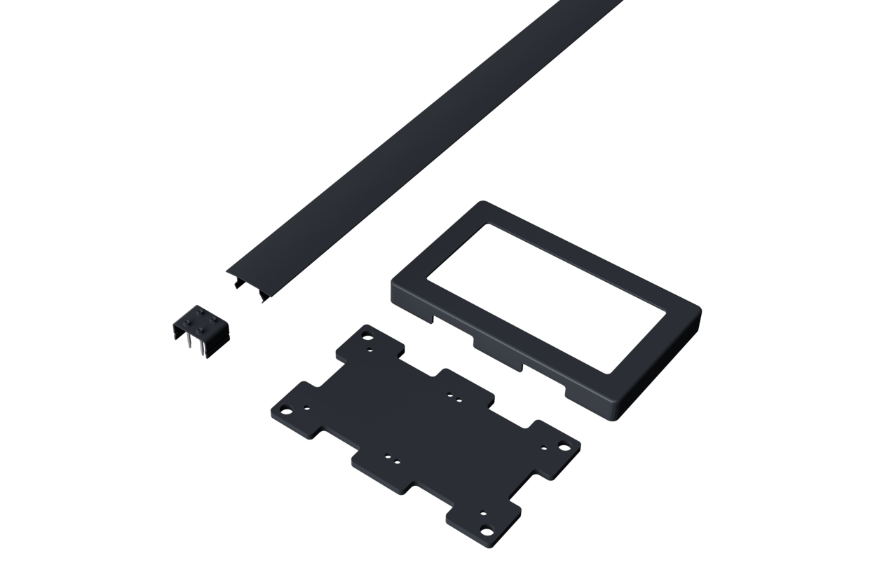

What's in the set?

A top cover profile that joins both pergolas at the roof, connector elements, a double metal base plate, and a double post cover for the columns standing side by side. Everything you need for a clean and stable connection.

Material and colours

The construction is made from quality aluminium with a matt powder-coated finish, the same colour and texture as your pergola. Available in three shades: anthracite (RAL 7024), white, and ivory cream.

Weather resistant

The powder coating protects the aluminium against weather, UV radiation, and corrosion. Install once and forget about maintenance.

Good to know

• The joining set is primarily intended for freestanding ANTARES pergolas with a 116 × 116 mm post profile.
• It can also be used with the wall-mounted variant, the post cover and metal base plate will simply remain unused.
• Up to 3 pergolas can be connected in a row (lengthwise or widthwise).
• L-shape configuration is only possible when connecting two pergolas.
• Connection is only possible between matching side dimensions (3 m with 3 m, 3.6 m with 3.6 m, or 4 m with 4 m).
• The set includes two base plates, one for each post at the connection point.
• We recommend having the joining set on hand at the time of first installation, it's best to assemble both pergolas at the same time.
