Vertical louvres in view
A short look at the vertical louvre panel fitted into the frame of an Antares pergola.

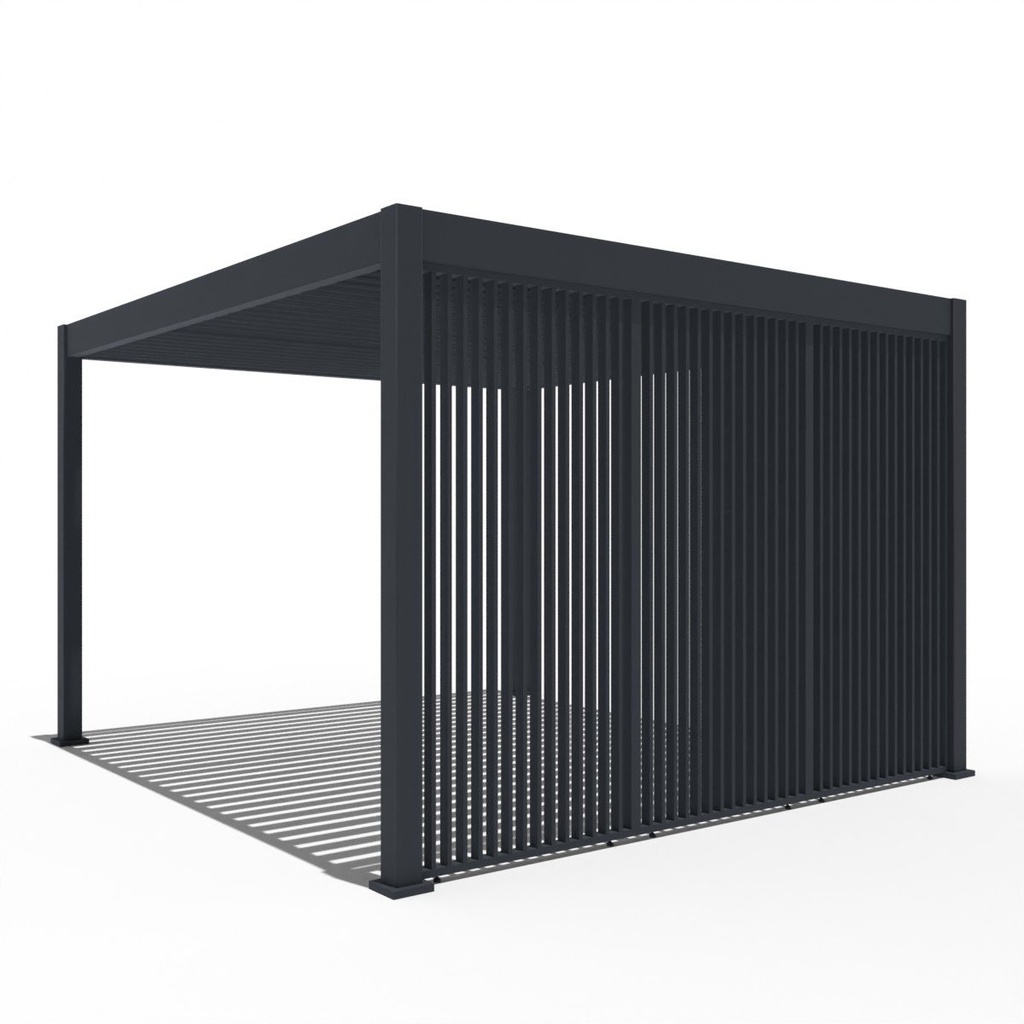

Vertical Louvered Side Panel
Benefits
Free delivery
Fast delivery: 7-14 days
Easy assembly
Verified quality
3 widths
93, 113 and 123 cm
233.5 cm
panel height
3 colours
anthracite, white, ivory cream
5.5 cm
louvre spacing
Privacy and comfort
Protection from prying eyes, sun and wind
The vertical louvres effectively shield you from the neighbours' eyes, from the sun and from the wind, while still letting soft light through and allowing the air to circulate freely. This creates a pleasant, calm atmosphere for relaxing under the pergola.
✓privacy the louvres shield you from the neighbours' eyes and direct sunlight
✓wind protection the louvre construction stops gusts of wind
✓air circulation air circulates freely and prevents heat from building up
Material
Powder-coated aluminium
The louvres and frame are made of aluminium. Choose the panel in the colour of your Antares pergola: anthracite, white or ivory cream.
✓UV resistance the colour coating does not fade, even after years in the sun
✓rain resistance the aluminium and colour coating are unaffected by moisture and rain
✓fixed louvres the louvres are firmly set in the frame with a spacing of 5.5 cm
Modular construction
Fitted into the Antares pergola frame
The panel is fitted directly into the frame of the Antares pergola. Fit it to one side, several sides or the corner of the pergola, along the whole side or as a single piece in any opening. All screws and materials are included in the delivery.
✓whole side three panels fill one side of the pergola
✓corner arrangement shields you from two sides at once
✓zone divider use the panels as an elegant divider between zones on the terrace
✓screws and materials included everything you need is in the delivery
Colour range
Three panel colours. Choose the shade that matches your Antares pergola and its surroundings.
Technical data
Vertical louvre side panel
Panel width93 cm
Panel height233.5 cmThickness6.5 cm
Weight23 kgMaterialPowder-coated aluminium
ColourAnthracite (RAL 7024 FS/mat)
LouvresVertical, fixed position (not adjustable)
Louvre spacing5.5 cm
PlacementOn one side, several sides or the corner of the pergola
InstallationFitted into the frame of the Antares pergola
Construction and dimensions
Matching
For which Antares pergola?
A panel 93 cm wide fills the side of an Antares pergola 3 m long (3 panels) or 6 m (6 panels). It fits the following models available in our shop:
Antares pergola 3 x 3 x 2.55 m3 panels
Antares pergola 3 x 3,6 x 2.55 m3 panels
Antares pergola 3 x 4 x 2.55 m3 panels
Antares pergola 3 x 6 x 2.55 m3 panels / 6 panels
Antares pergola 3,6 x 6 x 2.55 m6 panels
Antares pergola 4 x 6 x 2.55 m6 panels
Frequently asked questions
Which width do I need?
The panel width matches the side of the Antares pergola: three 93 cm panels fill a 3 m side, three 113 cm panels a 3.6 m side and three 123 cm panels a 4 m side. For longer sides (6, 7.2 and 8 m) you need six panels. You can also use the panel as a single piece in any opening. If you are not sure, write to us and we will check together.
Does the panel protect against wind and sun?
Yes. The vertical louvres shield you from direct sunlight and stop gusts of wind, while still allowing the air to flow freely.
Can I fit the panels to several sides of the pergola?
Yes. Fit the panels to one side, several sides or the corner of the Antares pergola. A corner arrangement shields you from two sides at once.
Are the louvres adjustable?
No. The louvres are fixed in the frame with a spacing of 5.5 cm. The louvre position is not adjustable.
What is in the package?
One panel with an aluminium frame and vertical louvres. Screws and materials for connecting to the pergola are included in the delivery; wall screws are not supplied.
Are wall-mounting screws included?
Screws for fixing to the pergola are included. In a wall-side setup, when the pergola stands against a wall, you fix the accessory on that side directly to the wall. Wall screws are not included, as they depend on the surface (wood, façade, concrete). You choose the right ones for your wall, and we are glad to advise you.
