Pergola Ancora Presentation

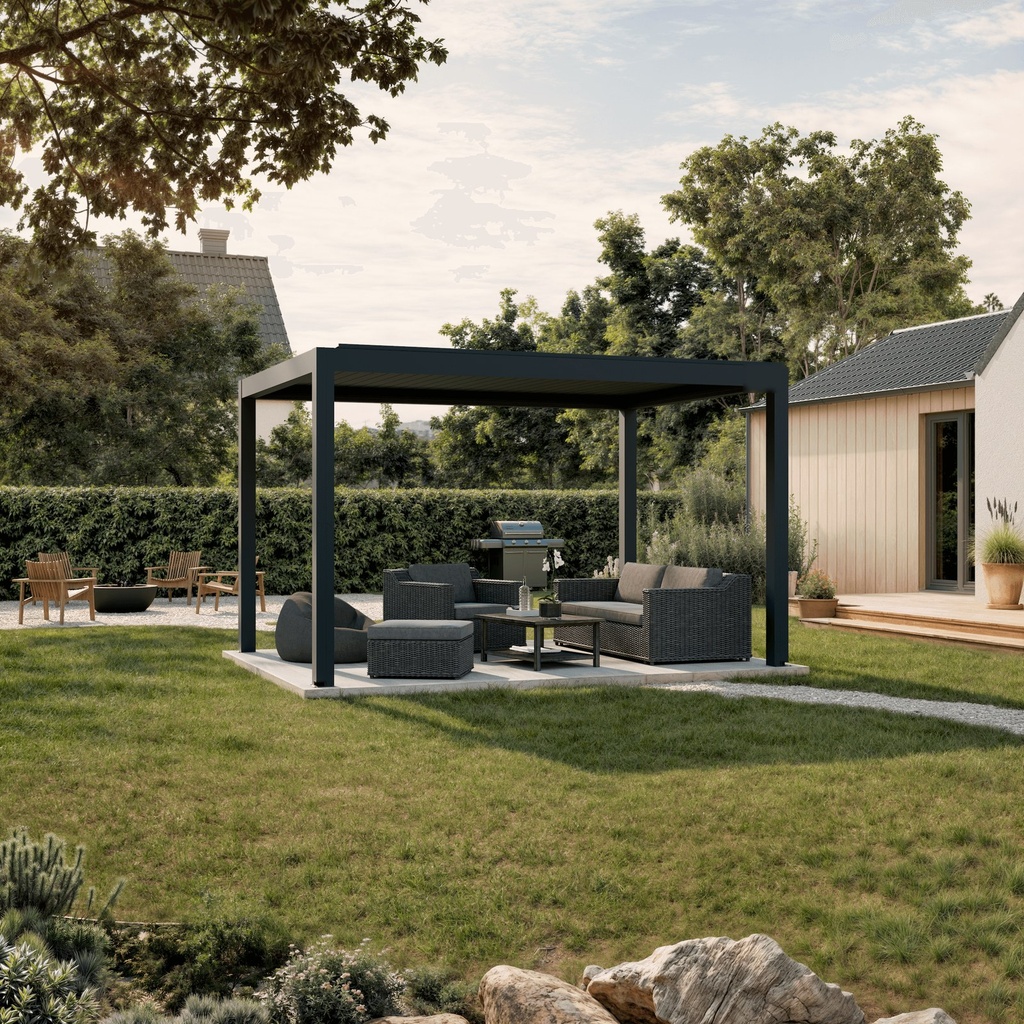

The Ancora bioclimatic pergola in real life: an aluminium structure with rotating louvres.
- set the louvres to suit the sun and the weather
- aluminium that stands up to the weather
- anthracite or white version
Bioclimatic Pergola Ancora
?unique=a1a3355)
Benefits
Free delivery
Fast delivery: 2-3 weeks
Easy assembly
Verified quality
Warranty
5 years on the structure
Everything you are looking for, in a single pergola
The Ancora premium bioclimatic pergola brings together quality materials, proven engineering and carefully considered detail: a motorised drive with remote control, built-in LED lighting and a watertight roof. Choose from nine sizes, three colours and a free-standing or wall-mounted layout, and adjust the height to suit you if you wish.
320 kg/m²
snow load
110 km/h
wind resistance
0-110°
louvre rotation
9 sizes
from 3 x 4 to 4 x 6 m
Built for all seasons
A structure winter cannot touch
This premium bioclimatic pergola is built for the whole year. With the louvres closed the roof carries 160 to 320 kg of snow per square metre, depending on the size, and the structure is tested for winds up to 110 km/h. The pergola stays outside all winter.
✓multi-chamber louvre profiles with high structural capacity
✓90° corner joints in special aluminium alloys, rigid and watertight
✓reinforced post bases for a solid connection to the ground
✓6063-T6 aluminium with stainless steel fasteners
Picture your own pergola
Drag the slider to compare before and after installation
Without a pergola
With the Ancora pergola
Free-standing or wall-mounted
In the middle of the garden or right by the house
Ancora stands on four posts of its own, or you fix it to the facade, where the wall carries one side of the roof and only two posts remain. Six-metre versions have an additional intermediate support because of the span. You choose the layout when ordering, the price stays the same.
The dimension drawing below adapts automatically to the chosen size and layout.
Evenings under Ancora
Light that stays when the sun goes down
Warm white LED lighting (3000 K) is built into the roof. You switch it on with the same remote control as the louvres, and the motor is so quiet you will not hear it during a conversation.
Roof, shade and light, all at the touch of a button.
Colour range
Three colour versions, same price. Powder-coated aluminium, maintenance free.
One gesture to the right atmosphere
Maximum light
Turn the louvres towards the sun for the most daylight under the structure.
Optimal ventilation
Set the louvres vertical (90°) for optimal ventilation under the structure.
Shade
Angle the louvres away from the sun so the shade falls exactly where you sit.
Rain and snow
Closed louvres seal tight, rainwater drains through the posts. In winter they also carry snow.
The adjustable louvres protect you not only from the sun but also from rain and snow. They rotate from 0°, where the roof is fully closed and watertight, up to 110°. Everything is set with the remote control, without getting up from your chair.
The louvre
Strength in Detail, Perfection in Design
Solid anchoring
Safety starts at ground level
The post bases are reinforced, so the pergola stands firm even in stronger gusts of wind. The post is joined to the base across the full width of the foot, and the load is spread over several points.
✓reinforced post base takes higher loads
✓fixing at several points spreads the force across the base
✓stainless steel fixings stay rust-free even after years outdoors
Technical data
Free-standing · selected size
Installed dimensions300 x 402,5 x 252 cm
Total weight348,50 kg
Wind resistance110 km/h
Snow load320 kg/m²Material6063-T6 aluminium
FastenersStainless steel
Louvre rotation angle0° to 110°
DriveElectric, remote control
Dimension overviewDetailed dimensions for the selected size
Inner width273 cm
Inner projection375,5 cm
Inner height (to the beam)235 cm
Height with louvres open268,2 cm
Post cross-section13,5 x 13,5 cm
Structure thickness2 mm
Louvre thickness1,7 mm
Dimensions of selected size
Frequently asked questions
Is the roof really 100 % watertight?
Yes. With the louvres closed, EPDM seals do the sealing, and rainwater drains invisibly through the gutter and the downpipes inside the posts, so the terrace stays dry even in a downpour.
How much snow and wind does it take?
A closed roof carries 160 to 320 kg of snow per square metre depending on the size of the pergola, and the structure is tested for winds up to 110 km/h. The exact figure for the selected size is listed in the technical data.
Can I assemble it myself?
Yes. Every part is labelled, detailed instructions are included and this page also has video guides. Three people usually put the pergola up in a single day.
What connection and base do I need?
A standard 230 V connection is enough for the motor; have the wiring done by an electrician. The pergola can stand on concrete, stone, a wooden deck or prepared foundations; the wall-mounted version needs a load-bearing facade.
How quickly will I get it?
Delivery usually takes 2 to 3 weeks from order confirmation. Delivery is free and we bring it to your delivery address.
What is the warranty?
5 years on the aluminium structure and 2 years on the motor and electronic components. The warranty covers material and manufacturing defects, but not damage from improper use or extreme weather.
How much maintenance does it need?
Almost none. Powder-coated aluminium does not rust or fade and the material is fully recyclable. An occasional rinse with water is enough.
Technical Specifications
| Width | 3.0 m |
| Depth | 4.0 m |
| Height | 2.5 m |
| Lamella rotation angle | 0° - 110° |
| Opening system | Electric |
| Post dimensions | 13,5 x 13,5 cm |
| Aluminum thickness | 2 mm |
| Weight | 348,5 kg |
| Louvre thickness | 1,7 mm |
| Snow load | 320 kg/m² |
| Wind resistance | 110 km/h |
LED
Includes single-colour LED (3000K warm white): • Controlled via the same remote as the roof • On/off with a single button • Warm white light for a pleasant atmosphere
References
Waterproof
When closed, the louvres give protection from the rain.
- rainwater drains into the integrated downpipes
- closed louvres act as a roof
- the terrace and the furniture stay dry
Practical Slat Connection
Practical fittings connect the louvres quickly and securely.
- every louvre firmly in its place
- the louvres stay aligned
- the whole process is shown in the video
90-degree corner joint
The corner joint holds the posts and the beams at a right angle and at the same time carries the water from the roof on towards the post.
- all the joints are made from special aluminium profiles
- a right angle with no visible fasteners, the structure stays clean
- the seal in the corner keeps water from escaping past the drain
LED ambient lighting
The lighting is built into the pergola profile, and you switch it on with the same remote control as the roof.
- warm white light of 3000 K for an evening atmosphere
- on and off with a single button, dimming is not available
- the light strip is hidden in the profile, with no visible cables
Assembly Instructions
Set it in the middle of the garden or fix it to the house, add screens or sliding louvre side panels, and the terrace becomes the favourite room of your home. The Ancora premium bioclimatic pergola is not a seasonal extra, it is a new room without walls.
Send inquiry
We offer exclusively standard (type) pergolas that you can find on our website. Custom dimensions or made to measure production is not possible, so you can choose from the existing models in our offer.
As many as 99 % of our customers choose self-assembly, because the pergolas are designed so that installation is simple and straightforward. All individual parts are clearly marked and detailed assembly instructions are included. The average assembly time is one day. That the assembly really is simple is confirmed by the many reviews and experiences of our customers, which you can check on our website.
With self-assembly you can save the entire cost of installation, which for pergolas usually represents a considerable additional expense.
For anyone who would still like to leave the pergola to professionals, we can also arrange installation for an additional charge through our external partner, who specialises in pergola installation.
If you have any additional questions, we are happy to help.
