RGB lighting on the Antares pergola
Set the colour and brightness with the remote control or the app.
LED ambient lighting
Benefits
Free delivery
Fast delivery: 7-14 days
Easy assembly
Verified quality
RGB
adjustable light colour
IP65
dust and water protection
100 m
remote control range
WLAN
app control
Ambient light
Turn your pergola into a light experience

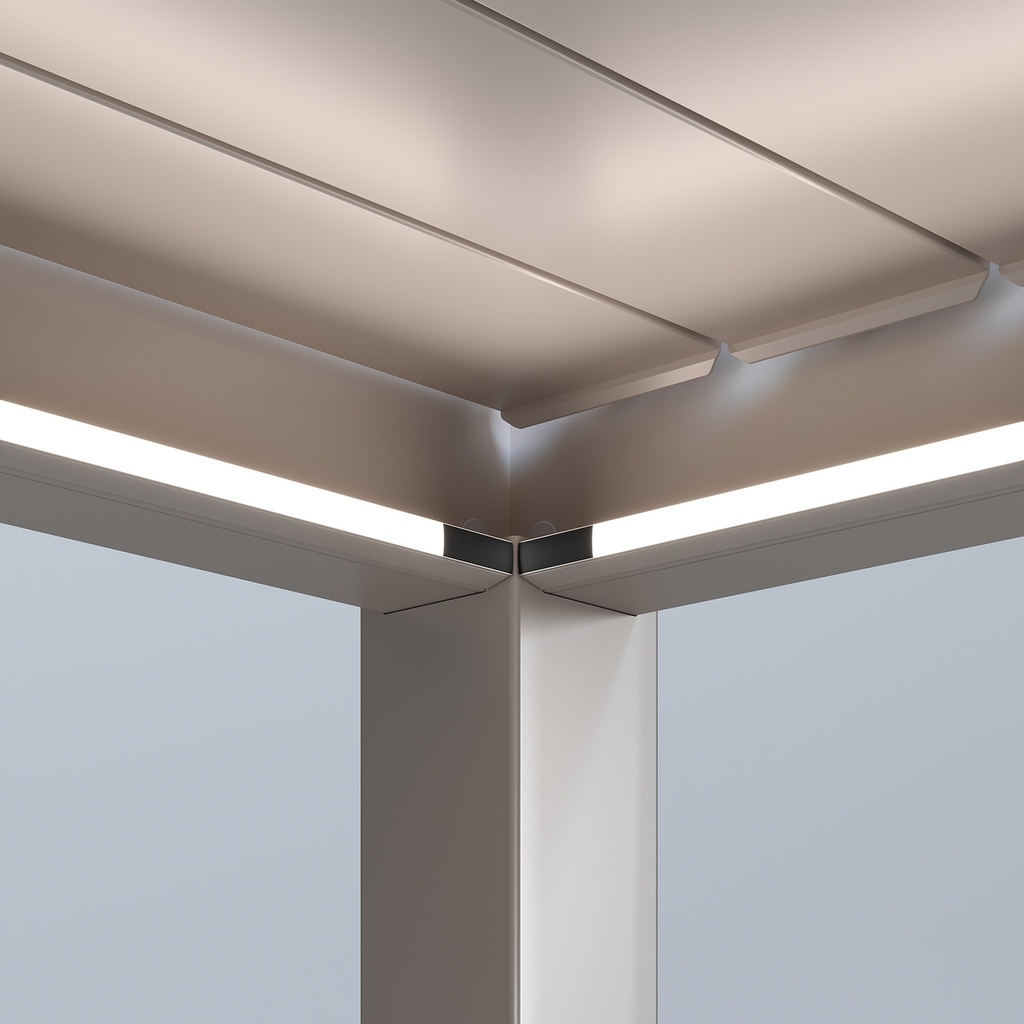

Whether you are planning dinner under the stars, a party with friends or a relaxed outdoor movie night, RGB LED lighting always creates the perfect atmosphere. The aluminium profile with diffuser cover provides soft, even light.
✓RGB lighting adjust the colour and brightness to every moment
✓no visible LED dots the light is spread evenly along the full length of the profile
✓60 LEDs per metre even light distribution around the pergola
Control
Remote control and app
Switch the light on, off and dim it with the remote control or your smartphone. Set the colour and brightness as you like.
✓remote control range up to 100 m
✓app on your phone control via WLAN connection
✓colour themes from warm white to dynamic colour effects
Kit
Clicks into the Antares pergola gutter
The profile simply clicks into the pergola gutter, with no drilling and no additional fixing elements. The kit is made for the size and configuration of your pergola and comes with detailed instructions.
✓control unit and remote control everything you need for control is in the kit
✓profiles in the pergola colour aluminium profiles with LEDs and diffuser cover
✓for manual Antares pergolas free-standing or wall-mounted configuration
✓retrofit also on an already installed pergola
Colour range
Choose the profile in the colour of your Antares pergola: anthracite, white or ivory cream.
Technical data
LED ambient lighting
For Antares pergola3 x 3 m
ConfigurationWall-mounted pergolaLight colourRGB, adjustable
Luminous intensity2200 to 2600 mcd
LED density60 LED/m
Operating power14.4 W/m
Power supply24 V DC / 150 W
ControlRemote control and app (WLAN)
Remote control rangeup to 100 m
Frequency (RF)868.35 MHz
ProtectionIP65
ProfileAluminium with diffuser cover
InstallationClicks into the Antares pergola gutter
PackageLED profiles, control unit, remote control, instructions
Compatibility
Which Antares pergola is it for?
The kit is made for the Antares pergola measuring 3 x 3 m. Choose the same size and configuration as your pergola.
Antares pergola 3 x 3 x 2.55 m (wall-mounted)
Frequently asked questions
Which kit do I need?
Choose the size and configuration of your Antares pergola. The kit for a free-standing pergola differs from the kit for a wall-mounted pergola. If you are not sure, write to us and we will check together.
Can I add the lighting to an already installed pergola?
Yes. On an already installed pergola part of the structure has to be taken apart, detailed instructions are included.
Does the kit fit a motorised pergola?
The kit is intended for manual (non-electric) Antares pergolas.
How do I control the light?
With the remote control with a range of up to 100 m or via the app on your smartphone (WLAN). Set the colour, brightness and colour themes.
Is the lighting rain-resistant?
Yes. IP65 protection means resistance to dust and water, the lighting is suitable for permanent outdoor use.
What is in the package?
Aluminium profiles with LEDs and diffuser cover in the chosen colour, LED control unit, remote control and instructions.
RGB
adjustable light colour
IP65
dust and water protection
100 m
remote control range
WLAN
app control
Ambient light
Turn your pergola into a light experience
Whether you are planning dinner under the stars, a party with friends or a relaxed outdoor movie night, RGB LED lighting always creates the perfect atmosphere. The aluminium profile with diffuser cover provides soft, even light.
✓RGB lighting adjust the colour and brightness to every moment
✓no visible LED dots the light is spread evenly along the full length of the profile
✓60 LEDs per metre even light distribution around the pergola
Control
Remote control and app
Switch the light on, off and dim it with the remote control or your smartphone. Set the colour and brightness as you like.
✓remote control range up to 100 m
✓app on your phone control via WLAN connection
✓colour themes from warm white to dynamic colour effects
Kit
Clicks into the Antares pergola gutter
The profile simply clicks into the pergola gutter, with no drilling and no additional fixing elements. The kit is made for the size and configuration of your pergola and comes with detailed instructions.
✓control unit and remote control everything you need for control is in the kit
✓profiles in the pergola colour aluminium profiles with LEDs and diffuser cover
✓for manual Antares pergolas free-standing or wall-mounted configuration
✓retrofit also on an already installed pergola
Colour range
Choose the profile in the colour of your Antares pergola: anthracite, white or ivory cream.
Technical data
LED ambient lighting
For Antares pergola3 x 3 mConfigurationFree-standing pergolaLight colourRGB, adjustable
Luminous intensity2200 to 2600 mcd
LED density60 LED/m
Operating power14.4 W/m
Power supply24 V DC / 150 W
ControlRemote control and app (WLAN)
Remote control rangeup to 100 m
Frequency (RF)868.35 MHz
ProtectionIP65
ProfileAluminium with diffuser cover
InstallationClicks into the Antares pergola gutter
PackageLED profiles, control unit, remote control, instructions
Compatibility
Which Antares pergola is it for?
The kit is made for the Antares pergola measuring 3 x 3 m. Choose the same size and configuration as your pergola.
Antares pergola 3 x 3 x 2.55 m (free-standing)
Frequently asked questions
Which kit do I need?
Choose the size and configuration of your Antares pergola. The kit for a free-standing pergola differs from the kit for a wall-mounted pergola. If you are not sure, write to us and we will check together.
Can I add the lighting to an already installed pergola?
Yes. On an already installed pergola part of the structure has to be taken apart, detailed instructions are included.
Does the kit fit a motorised pergola?
The kit is intended for manual (non-electric) Antares pergolas.
How do I control the light?
With the remote control with a range of up to 100 m or via the app on your smartphone (WLAN). Set the colour, brightness and colour themes.
Is the lighting rain-resistant?
Yes. IP65 protection means resistance to dust and water, the lighting is suitable for permanent outdoor use.
What is in the package?
Aluminium profiles with LEDs and diffuser cover in the chosen colour, LED control unit, remote control and instructions.
